Basic GPS Tracking Devices
The "Edge" GPS tracking device that provides a simple, effective and commercial grade GPS tracking device for Cars, Trucks & Machinery within your fleet.
These are suitable for companies wanting a simple & cost effective, hardwired professionally installed GPS solution across their fleet of company cars, light commercial vehicles, trucks & machinery.
The "Edge" GPS tracking device provides basic GPS tracking features in a reliable & robust commercial product. For more information please visit our Basic Tracking Software page.

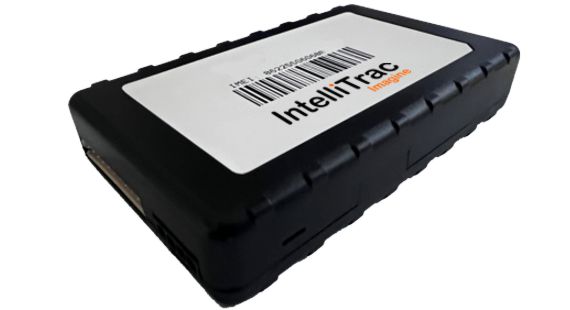

"IntelliTrac Edge"
Robust & Elegant
With the finest craftsmanship, the IntelliTrac "Edge" is a fully-featured, minature, highly competitive & a cost-effective GPS tracking device developed for fleets of all sizes. It offers you crystal clear real-time tracking at 30 second intervals & instantaneous notifications when vehicle ignitions are switched on/off.
GSM & GPS Antennas are conveniently mounted within the device as is a LiPo rechargeable backup battery. Coupled with optical tamper sensors, it makes tampering almost impossible.
IntelliTrac Edge GPS Tracker Specifications & Features
Technical Specifications which set the benchmark in the industry.
| Feature | IntelliTrac Edge |
|---|---|
| Part No./SKU | ITES-810 4GCatM1 |
| Dimensions | 88(L) ×43.0(W) ×13.0(H) mm |
| Weight | 60g |
| GPS Receiver | 66 Channel Ublox L1,1575.42MHZ C/A code |
| Frequency | 4G CatM1 AU & others |
| Power | 9V to 40V |
| Power Consumption Active | <150mA |
| Power Consumption Standby | <19mA |
| Power Consumption Sleep | <8mA |
| Backup Battery | 400mA LiPo 3.7V |
| Configuration Port | UART |
| Accelerometer | None |
| Blackbox Recorder | None |
| GSM Outage Store & Forward Buffer | 1000 |
| Operating Temp | -20 to +65 deg C |
| GPS Position Updates | Configurable 30 sec |
| Realtime Clock Compensate Loss of GPS | |
| GPS Bounce inaccuracy filtering | |
| Sim Pin Setting | |
| Over The Air Configuration | |
| Over The Air Firmware Updates | |
| RoHS Compliant | |
| CE Compliant | |
| FCC Certified | |
| Aus A-Tick & C-Tick | |
| Malaysia Sirim Approval | |
| Indonesia Type Approval | |
| Vehicle Battery Disconnect Warning | |
| Vehicle Battery Connect Notification | |
| Vehicle Battery Low Voltage Warning | |
| Vehicle Battery Voltage Recharged Notification | |
| GPS Tracker Unplugged Warning | |
| GPS Tracker Plugged In Notification | |
| GPS Tracker Battery Low Warning | |
| GPS Tracker Battery Recharged Notification | |
| Smart Power Management Modes | |
| Daily Health Check Reporting | |
| 3 Times Per Day Reporting Regardless Of Use | |
| Advanced Driver Behaviour Analysis | |
| Detect Extreme Braking | |
| Detect Collision | |
| Monitor Speed | |
| Alert Excessive Speed | |
| GPS Odometer | |
| GPS Odometer Accuracy Filtering | |
| Driver Identification RFID | Optional |
| Real Time Driver Behaviour Coaching | Optional |
IntelliTrac Easy GPS Tracking Software Features
IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App
| Number of Software Users | Unlimited |
| Software Security | Username & Password |
| Software Privileges | User, Power User, Power User Plus, Superuser, Administrator |
| Allocation of software privileges to each user | |
| Allocation of day time login privilges to each user | |
| Allocation of date time reporting & viewing privileges to each user | |
| After hours privacy mode setting | |
| Manual allocation of drivers to vehicles | |
| Automated app based allocation of drivers to vehicles | |
| Driver data tables including licencing requirements | |
| Driver incident/infringement register | |
| Vehicle make, model, year, reg, vin data register | |
| Custom vehicle data fields | |
| Vehicle Service data and alerts | |
| Fuel Card Usage reporting | |
| Live tracking multi vehicle | |
| Live tracking one vehicle per map window | |
| Single Vehicle Journey Replay | |
| Multi Vehicle Journey Replay | |
| Journey Report | |
| Stop time report | |
| Working hours report | |
| After hours usage report | |
| Activity within geofence report | |
| Excessive Idle Reporting | |
| Alert Wizard | |
| Pop Up alerts on software | |
| Email Alerts | |
| SMS alerts via 3rd party email to sms converter (Additional cost) | |
| Push notifications via 3rd party Pushover app(additional cost) | |
| Alert Configuration Manager | |
| Driver behaviour reporting | |
| Driver behaviour fleet leader board | |
| Excessive RPM Alerts | |
| Fuel Consumption Reports | |
| Custom Report builder | |
| Report Email Scheduler | |
| Online Training Manual | |
| Online Training Video | |
| RPM Monitoring | |
| Customisable Dynamic Trend Analysis Dashboard |
