GPS Telematics for Engine Monitoring

IntelliTrac Live Engine Monitoring Via J1708, J1939 & OBDII

IntelliTrac IT300 Elite GPS Telematics device provides a complete range of engine management telematics solutions including the internal OBDII modules & external RS232 interfaced OBDII, J1708, J1939 CanBus modules. This solution provide a fluent, transparent engine monitoring telematic solution for fleets and businesses wanting to report and extract the most specific and thorough data from the vehicle and it's tracking.


Enquire
IntelliTrac IT300 Elite OBDII User Defineable Interface

OBDII Interface

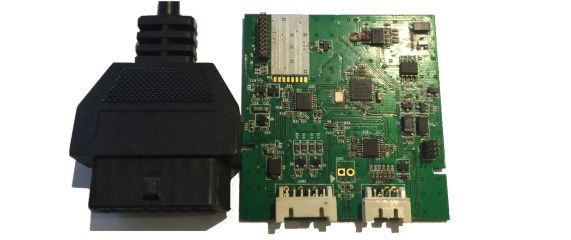

IntelliTrac Internal IT300 UDI

IntelliTrac OBDII UDI is an internal printed circuit board module which is slotted into the IT300 Elite, to provide OBDII engine management monitoring for most passenger and light commercial 12 volt vehicles manufactured in USA after 1996 and Australia after 2007. The UDI is capable of being configured to interpret up to 10 CanBus OBDII PID. It is also able to receive Diagnostic Trouble Code flags and query both live and stored Diagnostic Trouble Codes

IntelliTrac "CanBus Interface"
Heavy Vehicle & Plant J1939 J1708

IntelliTrac J1939 & J1708 CanBus module interfaces to the IntelliTrac IT300 Elite GPS Tracker via the RS232 interface to provide CanBus engine management monitoring for most heavy vehicles and plant. The CanBus interface is capable of being configured to interpret various parameters available on the canbus such as engine load, fuel consumption, RPM, odometer, fuel levels, engine oil and coolant temperatures as well as diagnostic Trouble Code flags and query both live and stored Diagnostic Trouble Codes

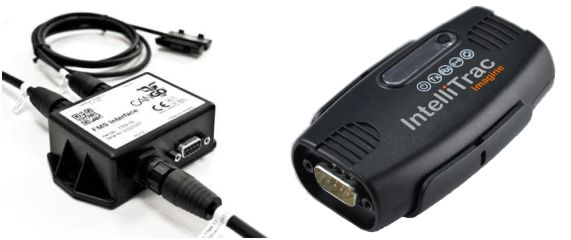

IntelliTrac J1939 J1708 CanBus Reader
IntelliTrac Fleet Servicing and Maintenance Data

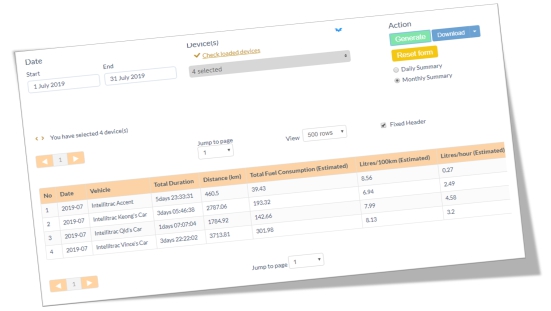

Fuel Consumption Reports

IntelliTrac's Fueling Software modules provide the following functionality based on CanBus/OBDII telematics hardware is installed within vehicles:

  •   Fuel Used Per Trip
  •   Fuel Used Per Period (eg:- Month)
  •   Average Fuel Consumption l/100km or l/hr per trip
  •   Average Fuel Consumption l/100km or l/hr per Period (eg: Day, Week, Month)
  •   Instantaneous fuel consumption
  •   Fuel Consumption Trends Per Vehicle
  •   Fuel Consumption Trends Per Fleet/Department/Cost Centre

On Demand Maintenance

On demand maintenance alerts are desirable in most cases, as drivers are not generally aware of faults within their vehicles until a breakdown or major damage occurs.


  • Live OBDII & CanBus Trouble Code Alerts For Office & Drivers
  • Ability to Remote Query Live Trouble Codes
  • Ability to Remote Query Stored Trouble Codes
  • Ability to Remote Query Pending Trouble Codes

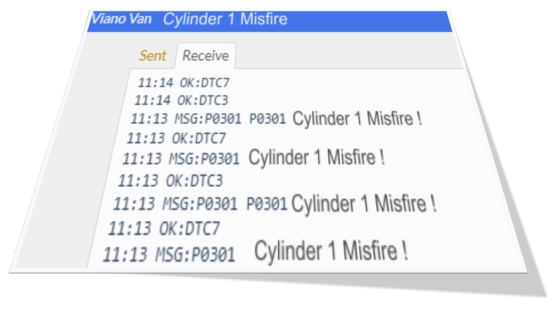

IntelliTrac Diagnostic Trouble Codes Proactive Servicing
IntelliTrac Fleet Servicing and Maintenance Data

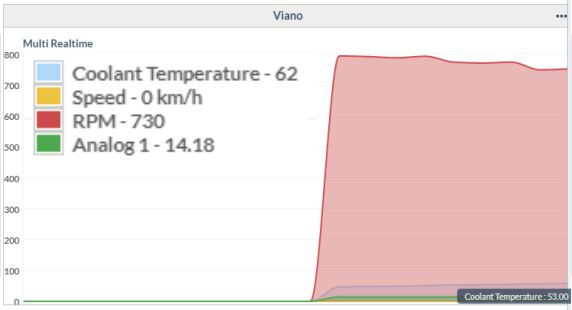

Live Engine Data Graphed

IntelliTrac's Dynamic Configurable Dashboard allows individual users to graph live engine data and generate instantaneous alerts for example:

  •   Live RPM
  •   Live Speed
  •   Live Coolant Temperature
  •   Live Instantaneous Fuel Consumption
  •   Live Hour Meter
  •   Live Odometer
  •   Live Alternator Charge Voltages

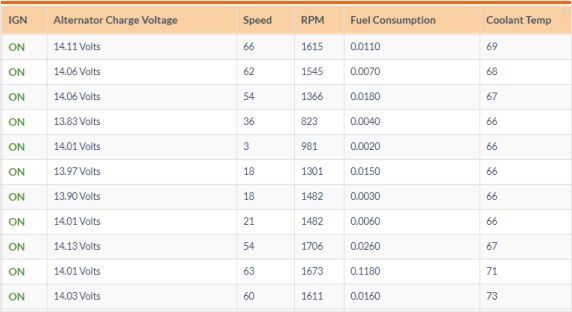

Live Engine Data Reports

On demand live engine data reporting allows you to drill down to 15 to 30 second increments of engine management data showing selected parameters such as:


  • Speed
  • RPM
  • Coolant Temperatures
  • Engine Loads
  • Instantaneous Fuel Consumption
  • Alternator Charge Voltage
IntelliTrac Diagnostic Trouble Codes Proactive Servicing
