Mid-Tier GPS Tracking Devices

Welcome to IntelliTrac "Eclipse" - Our Mid Range tracking device.

The IntelliTrac "Eclipse" GPS tracking devices are suitable for companies wanting a simple & cost effective hardwired professionally installed solution across their fleet of company cars, light commercial vehicles, trucks & machinery.

The "Eclipse" provides intermediate GPS tracking features including driver behaviour & internal decision making algorithms to detect excessive idle, overspeeding, harsh braking & acceleration as well as the ability to interface basic switches & sensors in a reliable & robust commercial product.


Enquire

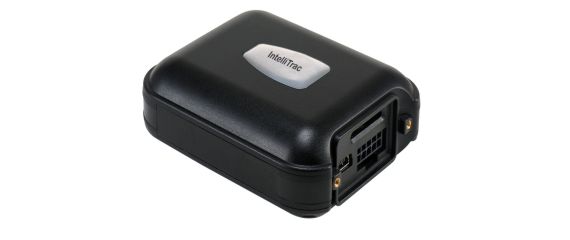

IntelliTrac Eclipse GPS Tracker

"IntelliTrac Eclipse"
Smart, Robust & Elegant

"Eclipse" is a fully-featured, smart cost-effective GPS tracker developed for company vehicles, trucks, buses & machinery. It offers a fully configurable platform to track in a variety of modes including time, distance and change of direction, along with configurable decision making processes to detect poor driver behaviour, excessive idling & changes in PTO status. Eclipse also has the ability to use its rules processor to take actions such as control other devices based on certain condition statuses of monitored PTOs. The Eclipse is equipped with an 1100mAH LiPo rechargeable backup battery providing many hours of operation when wires are cut or vehicle batteries disconnected.

IntelliTrac Eclipse GPS Tracker Specifications & Features

Technical Specifications which set the benchmark in the industry.

Feature IntelliTrac Eclipse
Part No./SKU IT10
Dimensions 60(W) x 27(H) x 77(D) (mm)
Weight 110g
GPS Receiver 66 Channels A-GPS & Glonass
Frequency 3G 4GLTE All Countries
Power 8V to 35V
Power Consumption Active <150mA
Power Consumption Standby <55mA
Power Consumption Sleep <8mA
Backup Battery 1100mA LiPo 3.7V
Configuration Port USB
Accelerometer Triaxial
Blackbox Recorder 100,000 event
Blackbox Recorder Sample Rate 1 Second
GSM Outage Store & Forward Buffer 100,000 event
Operating Temp -20 to +65 deg C
GPS Position Updates Configurable 30 sec
Realtime Clock Compensate Loss of GPS
GPS Bounce inaccuracy filtering
Sim Pin Setting
Over The Air Configuration
Over The Air Firmware Updates
RoHS Compliant
CE Compliant
FCC Certified
Aus A-Tick & C-Tick
Malaysia Sirim Approval
Indonesia Type Approval
Vehicle Battery Disconnect Warning
Vehicle Battery Connect Notification
Vehicle Battery Low Voltage Warning
Vehicle Battery Voltage Recharged Notification
GPS Tracker Unplugged Warning
GPS Tracker Plugged In Notification
GPS Tracker Battery Low Warning
GPS Tracker Battery Recharged Notification
Smart Power Management Modes
Daily Health Check Reporting
3 Times Per Day Reporting Regardless Of Use
Advanced Driver Behaviour Analysis
Detect Extreme Braking
Detect Collision
Monitor Speed
Alert Excessive Speed
GPS Odometer
GPS Odometer Accuracy Filtering
Customised Event Configuration
Input Ports 2 positive & 2 Negative Triggered
Ability to connect SOS buttons & other switched sensors 1 positive & 2 Negative Triggered Switches
Ability to connect analog sensors such as fuel level sensors
Output Ports 4 Negative Triggered

IntelliTrac Eclipse GPS Tracking Software Features

IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App

Number of Software Users Unlimited
Software Security Username & Password
Software Privileges User, Power User, Power User Plus, Superuser, Administrator
Allocation of software privileges to each user
Allocation of day time login privilges to each user
Allocation of date time reporting & viewing privileges to each user
After hours privacy mode setting
Manual allocation of drivers to vehicles
Automated app based allocation of drivers to vehicles
Driver data tables including licencing requirements
Driver incident/infringement register
Vehicle make, model, year, reg, vin data register
Custom vehicle data fields
Vehicle Service data and alerts
Fuel Card Usage reporting
Live tracking multi vehicle
Live tracking one vehicle per map window
Single Vehicle Journey Replay
Multi Vehicle Journey Replay
Journey Report
Stop time report
Working hours report
After hours usage report
Activity within geofence report
Excessive Idle Reporting
Alert Wizard
Pop Up alerts on software
Email Alerts
SMS alerts via 3rd party email to sms converter (Additional cost)
Push notifications via 3rd party Pushover app(additional cost)
Alert Configuration Manager
Driver behaviour reporting
Driver behaviour fleet leader board
Excessive RPM Alerts
Fuel Consumption Reports
Custom Report builder
Report Email Scheduler
Online Training Manual
Online Training Video
RPM Monitoring
Customisable Dynamic Trend Analysis Dashboard
