GPS Tracking For Police, Fire, Ambulance

A complete scaleable turnkey telematics solution

At IntelliTrac we understand that emergency services require mission critical robust telematics devices with total redundancy matched to secure dedicated enterprise server hardware & software providing the highest level of reliability & data security in rest and in transit.

  Contact Us For More Information

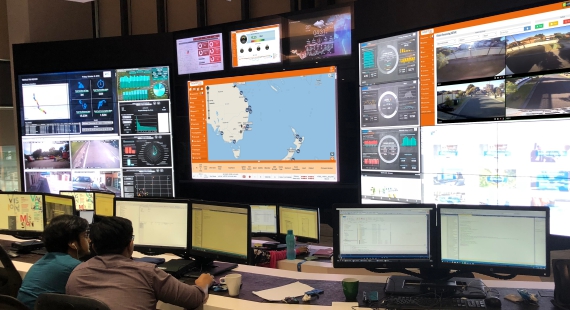

Emergency Services Dispatch Centre

"IntelliTrac Elite"
Emergency Services Edition

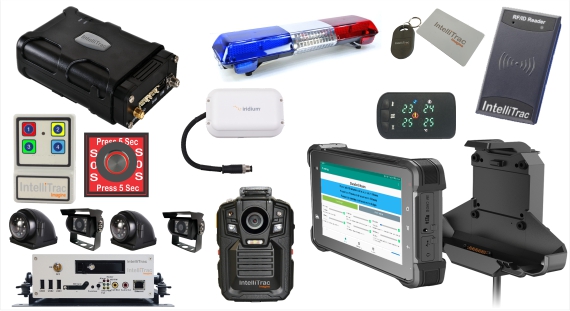

IntelliTrac Emergency Services GPS Telematics Device

IntelliTrac Elite Emergency Services edition provides additional functionality such as:

  • Encrypted data transfer via private telco security networks with VPN IPSec endpoint into dedicated physical enterprise servers.
  • Certified to Cispr25 Class5 for crucial emergency services communications
  • Redundant Telco Networking
  • Assisted GPS, Glonass, Galileo & Beidu location based GNSSS
  • Dead Reckoning for tracking through tunnels & underground car parks, as well as better accuracy in CBD areas via the minimisation of urban canyoning effects
  • Driver Identification
  • Integration into light bars and sirens
  • Safe operating speed driver notifications
  • Integration into vehicle engine management systems
  • Tyre pressure monitoring
  • Live video streaming and recording options MDVR & BodyCams
  • Mobile Data Terminal Interfacing
  • Integrated Iridium Communications Backup
  • Capturing GSM Signal Strength with all locations
  • Automated location updates based on vehicle activity

Secured Telematics IT Infrastructure

IntelliTrac provides secure IT infrastructure platforms via a variety of methods including:


  • Dedicated private telco networks - no data traversing public internet
  • VPN Ipsec endpoints within data centres
  • Encrypted telematics data transmission
  • Dedicated physical servers within IntelliTrac Data Centres
  • Enterprise solutions within our client data centres
  • Cloud solutions on ASD compliant government Azure hosting
Emergency Services Server
Emergency Services GIS Mapping

Compliant Emergency Services Mapping

IntelliTrac GIS Department provides secure & compliant emergency services mapping layers based on official government data


  • Multiple mapping technologies & overlays
  • Integration of emergency services GIS data
  • GIS Mapping Data internally hosted
  • No external map server calls for increased security
SOS Button & Personal GPS Tracker

SOS & Man Down Buttons & Pendants

IntelliTrac provides a number of SOS, Duress and Man Down options as follows:

  • In vehicle mounted SOS button interfaced to the IntelliTrac Elite or Eclipse range of GPS Trackers
  • Short range 4 button SOS button interfaced to the IntelliTrac Elite GPS Tracker
  • Long Range SOS 1,2,3 or 4 button UHF remote control interfaced to the IntelliTrac Elite or Eclipse range of GPS Trackers
  • Standalone IntelliTrac Escort personal GPS tracker with SOS button and Man Down Function
  • Integration to 3rd party products such as SPOT personal tracker
  More Information

Accurate Service Records

Accurate Service Records are made easy with IntelliTrac's Fleet Service Manager Module.


  •   Record issues reported by drivers during pre-start checks
  •   Record issues reported by Telematics Engine Management Interface
  •   Record vehicle repair & service dates
  •   Record Vehicle Service/Inspection activity, works done, parts used
  •   Maintenance, Repair & Downtime Statistics
  •   Maintenance & Service Costs Register
  More Information
IntelliTrac Fleet Servicing and Maintenance Records
IntelliTrac Fuel Sensor

IntelliTrac
Fuel Level Monitoring

Our range of fuel tank level sensors as well as existing vehicle, plant & equipment fuel level sensors may be integrated into the IntelliTrac Elite range of products to monitor fuel tank levels.


IntelliTrac's advanced software is able to monitor & alert on fuel tank levels and calculate approximate fuel usage per hour or per km travelled as well as monitor for detections in rapid fuel level drops indicating fuel theft.

  More Information



FBT Electronic Logbook Console

FBT eLogbook Telematics Console

FBT Electronic logbooks are made easy with IntelliTrac's FBT Electronic Logbook module. This module is suited to organisations where employees are not provided company mobile phones or tablets. Employees simply present their ID Cards to the embedded Driver RFID Reader & select their trip purpose using a rotary dial


This method is ATO (Australian Taxation Office) approved with a class ruling, and is used seamlessly by many organisations.

Drivers have the ability to log into the IntelliTrac Hawk Web or Smartphone app to edit trip type and purpose at any time.

IntelliTrac GPS Telematics devices seamlessly integrate to automate recording driver details, origin, destination, odometer readings and days available for private use when generating Electronic FBT logbooks

  More Information

FBT App Integrated with GPS

IntelliTrac FBT elogbook apps make day to day recording of trips a breeze. The app seamlessly connects to the vehicle employees are driving and automatically reads data from the GPS tracking telematics device to automatically populate driver information, date and time of travel, origin and destination points and odometer readings. At the same time it prompts drivers to enter trip purpose at the start of each trip.


Using the IntelliTrac FBT app is also ATO (Australian Taxation Office) approved with a class ruling.

Drivers have the ability to log into the IntelliTrac Hawk Web or Smartphone app to edit trip type and purpose at any time.

  More Information
IntelliTrac FBT elogbook ATO approved app

Scalable Car Pooling Solutions

IntelliTrac Car Pooling Solutions

Since 2002 IntelliTrac has been a pioneering telematics hardware supplier to the pool car industry, providing solutions to resellers and integraters. Today we offer a complete & customisable solution to corporate & government fleet managers comprising of the following modules:

  • Online Booking System
  • RFID Card Keyless Entry & Go Technology
  • App based Keyless Entry & Go Technology
  • Booking Reminders
  • Return Reminders & Extensions
  • Ride Sharing/multi passenger/multi use
  • Multi Zone Pickup & Drop off
  • Book by vehicle attribute
  • Vehicle Utilisation Balancing
  • Automated or Manual Vehicle Allocation
  • Automated FBT Logbooks
  • Pre-Start Checks
  More Information

New Zealand Automated Electronic Road User Charges Under Development. Ask about our current ERUC modules.

  • Driver RFID Reader
    Driver RFID readers coupled with cards or keyfobs automatically assign drivers to vehicles for each trip.
  • Engine Management Monitoring
    OBDII Engine Management modules allow the telematics device to transmit live engine data & fault codes.
  • Mobile Data Terminal
    Our Android 4G LTE MDT runs a range of apps developed by IntelliTrac inc.Bizzow, CoR, FBT, Waste, TMS, eLogbooks.
  • Refrigerated Temperature Monitoring
    A range of refrigerated goods transport temperature monitoring sensors for up to 3 compartments
  • Tyre Pressure Monitoring
    Monitor up to 8 tyres for pressures & temperatures and stream alerts real time into the telematics platform.
  • Video Recording & Streaming
    Taking dashcams to the next level with 8 camera 30 day recording, live streaming, event capture interface by MDT.
  • FBT Console
    Providing a simple method of logging business & private trips to satisfy ATO FBT Logbook requirements in Australia.
  • Iridium Satcoms
    Connected to the IntelliTrac "Elite" provides Satcoms switch over when GSM networks are not available.
  • Mass Management
    IntelliTrac Elite provides interfacing to various brands of vehicle scales, providing live data streaming.
  • Driver Behaviour
    In Cabin Driver Behaviour feedback and coaching via audio visual signals
  • Remote SOS
    Providing a series of short and long range UHF remote sos buttons and pendants
  • Fuel Level Sensors
    IntelliTrac provides a range of fuel tank level sensors for plant & equipment

IntelliTrac Elite GPS Tracker Specifications & Features

Technical Specifications which set the benchmark in the industry.

Feature IntelliTrac Elite
Part No./SKU IT300
Dimensions (L x W x H): 115: 75: 32 mm
Weight 150g
Casing ABS with Optional IP66 Rating
GPS Receiver 66 Channels A-GPS & Glonass
GPS Dead Reckoning Yes - Underground Parking & Tunnel Positioning
Frequency 3G 4GLTE All Countries
Power 8V to 35V
Power Consumption Active <90mA
Power Consumption Standby <10mA
Power Consumption Sleep <4mA
Backup Battery 1100mA LiPo 3.7V
Configuration Port USB
Accelerometer Yes - Tri- axial
GyroScope Yes - Tri- axial
Blackbox Recorder 100,000 event high, 15,000 event low
Blackbox Recorder Sample Rate Configurable Time and/or Distance and/or change of heading and Ignition on and GPS Fix. Normally set to 1 Second
GSM Outage Store & Forward Buffer 100,000 event high, 15,000 event low
Operating Temp -20 to +80 deg C
GPS Position Updates Configurable Time and/or Distance and/or change of heading and Ignition on and GPS Fix. Normally set to 30 seconds or change of direction 30 degrees.
Realtime Clock Compensate Loss of GPS
GPS Bounce inaccuracy filtering
Sim Pin Setting
Over The Air Configuration
Over The Air Firmware Updates
Sim Pin Card Setting
RoHS Compliant
CE Compliant
FCC Certified
Aus A-Tick & C-Tick
Malaysia Sirim Approval
Indonesia Type Approval
Vehicle Battery Disconnect Warning
Vehicle Battery Connect Notification
Vehicle Battery Low Voltage Warning
Vehicle Battery Voltage Recharged Notification
GPS Tracker Unplugged Warning
GPS Tracker Plugged In Notification
GPS Tracker Battery Low Warning
GPS Tracker Battery Recharged Notification
Smart Power Management Modes
Daily Health Check Reporting
3 Times Per Day Reporting Regardless Of Use
Advanced Driver Behaviour Analysis
Detect Extreme Braking
Detect Collision
Monitor Speed
Alert Excessive Speed
GPS Odometer
GPS Odometer Accuracy Filtering
Customised Event Configuration
Input Ports 2 positive & 2 Negative Triggered
Input Ports Expansion - Additional Module 4 positive & 16 Negative Triggered including 4 Analog Digital Inputs
Ability to connect SOS buttons & other switched sensors 1 positive & 2 Negative Triggered Switches (without expansion module)
Ability to connect analog sensors such as fuel level sensors
Output Ports 4 Negative Triggered
Input Ports Expansion - Additional Module 20 - 4 Positive Triggered (Analog Digital) & 16 Negative Triggered with Additional Module
Output Ports Expansion - Additional Module 10 Negative Triggered with Additional Module
Bluetooth Connectivity for MDT Messaging & Hawk App 1 requires 1 serial port via additional module
Wireless Connectivity for MDT Messaging & Hawk App 1 requires 1 serial port via additional module
RFID Connectivity 1 requires 1 serial port
Vehicle Scales Connectivity 1 requires 1 serial port
Bucher Garbage Truck Compactor Connectivity 1 requires 1 serial port
Engine Hour Meter Reading
Engine Hour Meter Reading
Iridium Satcoms Optional - requires 1 serial port
J1939/1708 CanBus Engine Management Monitoring Optional - requires 1 serial port
OBDII CanBus Engine Management Monitoring Optional - requires 1 serial port slot
Mobile Data Terminal Interface Optional - requires 1 serial port
Tyre Pressure Monitoring System Optional - requires 1 serial port
Mass Management Vehicle Scales Interface Optional - requires 1 serial port
Refrigerated Transport Temperature Monitoring Interface Optional - requires 1 serial port
Bucher Garbage Interface Optional - requires 1 serial port
Street Sweeper Operations Interface
FloCon Operations Interface
Lawn Mower Blade Down Operations Interface
Grader Blade Down Operations Interface
Internal Hardware Geofencing Operations Interface
Configurable Events To Log & Poll Server
Configurable Events To Set Output Status on Device
Variable Position Updates Based on Inputs
Variable Max Speed Warning Updates Based on Inputs
Driver Behaviour Feedback In Cabin Coaching
Seat Belt Monitoring
4WD Engaged Monitoring
Speeding Within Geofence Monitoring
Fringe Benefits Tax eLogbook
Fringe Tax Credits Reporting
Road User Charge Recording
Wave & Go Pool Car Option

IntelliTrac Elite GPS Tracking Software Features

IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App. Some features listed below may be subject to the appropriate Telematics options as listed above being selected & installed within vehicles.

Number of Software Users Unlimited
Software Security Username & Password
Software Privileges User, Power User, Power User Plus, Superuser, Administrator
Allocation of software privileges to each user
Allocation of day time login privilges to each user
Allocation of date time reporting & viewing privileges to each user
After hours privacy mode setting
Manual allocation of drivers to vehicles
Automated app based allocation of drivers to vehicles
Driver data tables including licencing requirements
Driver incident/infringement register
Vehicle make, model, year, reg, vin data register
Custom vehicle data fields
Vehicle Service data and alerts
Fuel Card Usage reporting
Live tracking multi vehicle
Live tracking one vehicle per map window
Single Vehicle Journey Replay
Multi Vehicle Journey Replay
Journey Report
Stop time report
Working hours report
After hours usage report
Activity within geofence report
Excessive Idle Reporting
Alert Wizard
Pop Up alerts on software
Email Alerts
SMS alerts via 3rd party email to sms converter (Additional cost)
Push notifications via 3rd party Pushover app(additional cost)
Alert Configuration Manager
Driver behaviour reporting
Driver behaviour fleet leader board
Excessive RPM Alerts
OBDII/CanBusFuel Consumption Reports
Estimated Fuel Consumption Reports
Custom Report builder
Report Email Scheduler
Online Training Manual
Online Training Video
RPM Monitoring
Customisable Dynamic Trend Analysis Dashboard
Pool Car booking & Driver RFID Authentication System Wave & Go Access
Transport Management System App. Manifests, Mobile App, Sign on Glass Navigation
Chain of Responsibility NHVR Fatigue Management, Pre-start Check list, Mass Management App
Fringe Benefits Tax eLogbook App
IntelliTrac Messenger App
IntelliTrac Garbage Truck Waste Management App
IntelliTrac Street Sweeper Management App
IntelliTrac Route Optimisation App
Customised Map Geofences & Overlays
  • IntelliTrac Logo
  •   11 Scholar Drive
         Bundoora Vic 3083 Australia
  •   +61 3 9467 6188
  •   1300 767 492
  •   Email Us

About Us

We are committed to developing & bringing to market leading edge, reliable, affordable products & software solutions, that provide real benefits to our customers, backed by excellent customer service & support.


Read more
